• [C24-3212] The Pafessa Tongue Jack has 3,500 pound lift/tongue wt capacity, fits 2.25” mounting holes on most A-Frame trailers and RVs. This trailer jack features 18” of travel plus a 6” diameter adjustable footpad that adds 4.5” extension. Also features a 7 foot power cord with positive and negative wires for direct grounding. (Wire terminals not included)

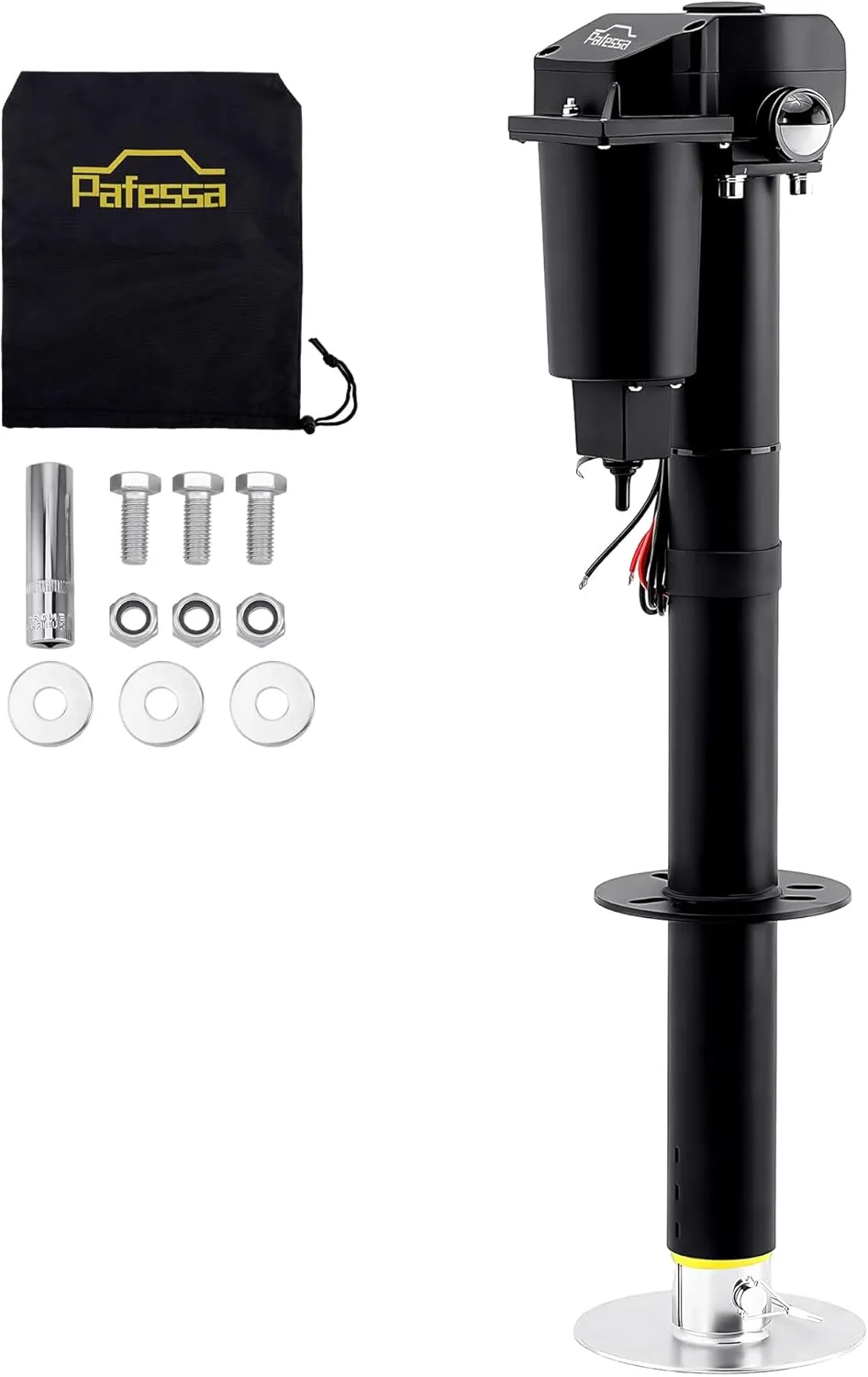

• [Easy Installation] Pafessa Electric Tongue Jacks are manufactured with a universal round mounting flange that is pre-drilled with multiple elongated mounting holes, which allows for use on various models of RVs. The package comes with accessories including high-strength nuts, 3/8” bolts, washers, a weather resistant cover, emergency crank socket, and installation/operating instructions.
• [12 Volt Operation] The Pafessa Tongue Jack uses a strong 150W motor. The operating voltage range is 9V-16V, so you don’t have to worry about the jack not working when the voltage is low. The jack uses an Acme threaded rod and high precision metal helical gears inside to ensure smooth and quiet operation. Working speed is 0.4in/second which exceeds international standards. Travels 10” in 50 seconds. The jack is controlled by a toggle switch conveniently located on the bottom of the motor housing.
• [30A Circuit Breaker] The RV electrical system is protected by the 30A circuit breaker integrated in this jack. This breaker is overload protection for the jack to shut off when the current exceeds 30A, the travel limits are reached in either direction,i or if the jack is not operated for 2 minutes. The breaker will reset itself in 15 seconds. If power is lost or not available, the jack can be manually operated with the supplied 11mm deep well socket (driver handle not included) and accessed through the hole on top of the jack housing.
• [Dual Side Lights] Pafessa trailer jacks are built to last with a durable powder-coated finish, water-resistant motor and gear housing and helpful illumination provided by two bright LEDs on both sides of the die-cast aluminum cap. Lights are controlled by a rocker switch on the back of the head of the jack.

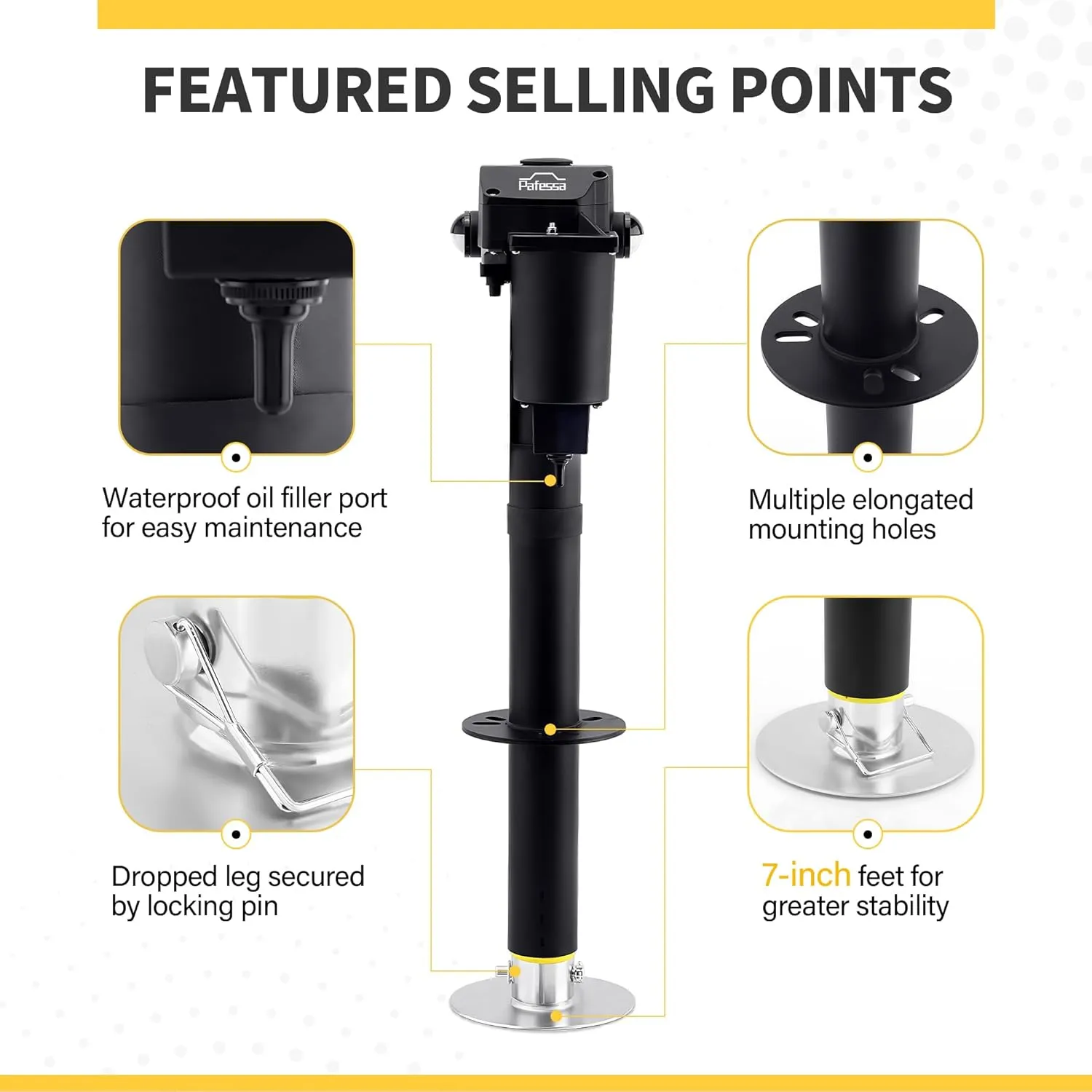

• [Easy to Maintain] Pafessa Electric Tongue Jacks have an easy access grease fitting to add lubricant to the jack screw for optimal product life and performance.
• [Tested and No Worries] The Pafessa brand has a complete after sales service. If you have any questions, our support team is always at your service.
