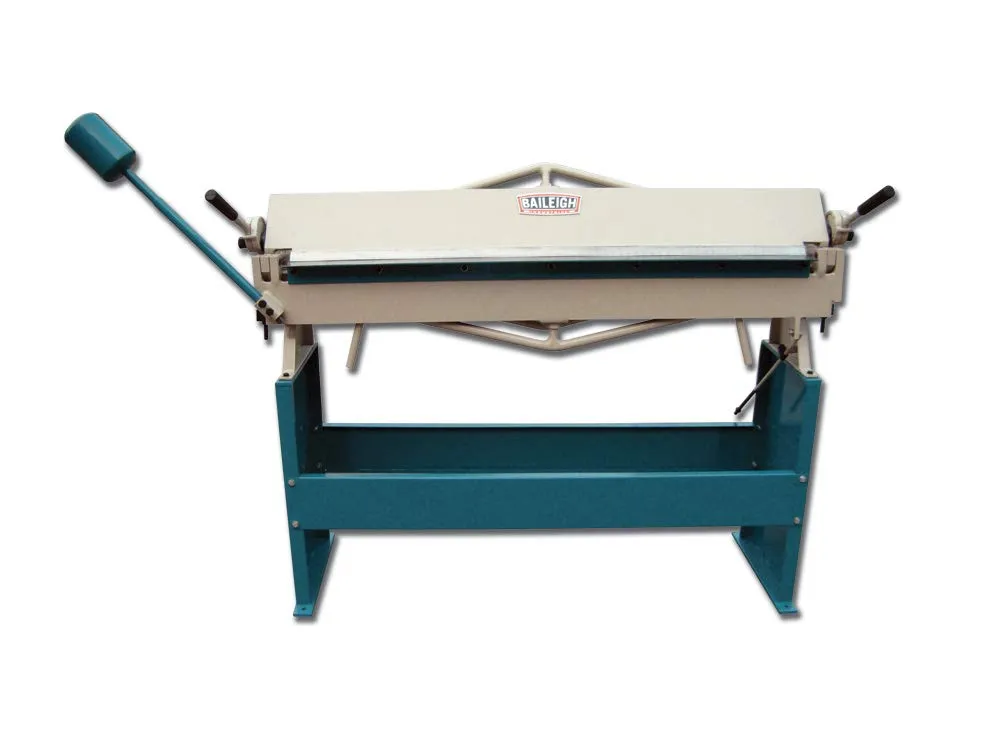

Name: Baileigh 48-Inch Straight Hand Brake, 16-Gauge Mild Steel (HB-4816E)
SKU: 770842

16-gauge mild steel (20-gauge stainless steel) maximum capacity
Bends up to 135 degrees across its full 48" (4-foot) length
Stop rod helps you create repeatable bends for production runs
Adjustable blade gap lets you easily switch between different material thicknesses
Material clamps at each end ensure that correct pressure is applied for each bend
Fully welded steel frame with support rods minimizes flex and maximizes rigidity
Counterweight apron lift assist makes it easier for you to bend at full capacity

The Baileigh HB-4816E is an economical sheet metal brake that has the capacity to form 16-gauge mild steel at a full 48 inches.>This sheet metal brake has a maximum bend angle of 135 degrees, and includes a bend stop rod for repeating bends. The main frame of the HB-4816E is fully welded with support rods to minimize flex and maximize stiffness when bending at full capacity. It features a material clamp at each end to ensure the correct pressure is applied for each bend. Blade gap is also adjustable on the HB-4816E. All pivots and clamping components are machined to exacting tolerances to achieve the best bend quality. This sheet metal brake also comes with a bolt together stand, stop rod, and counterweight to assist with bending.Baileigh covers this sheet metal brake with a one-year parts warranty and lifetime technical support by phone.

Product Dimensions ‏ : ‎ 66.5 x 22.75 x 55.25 inches; 450 Pounds
Date First Available ‏ : ‎ September 25, 2013
Manufacturer ‏ : ‎ Baileigh Industrial
