Product Code #KES5200

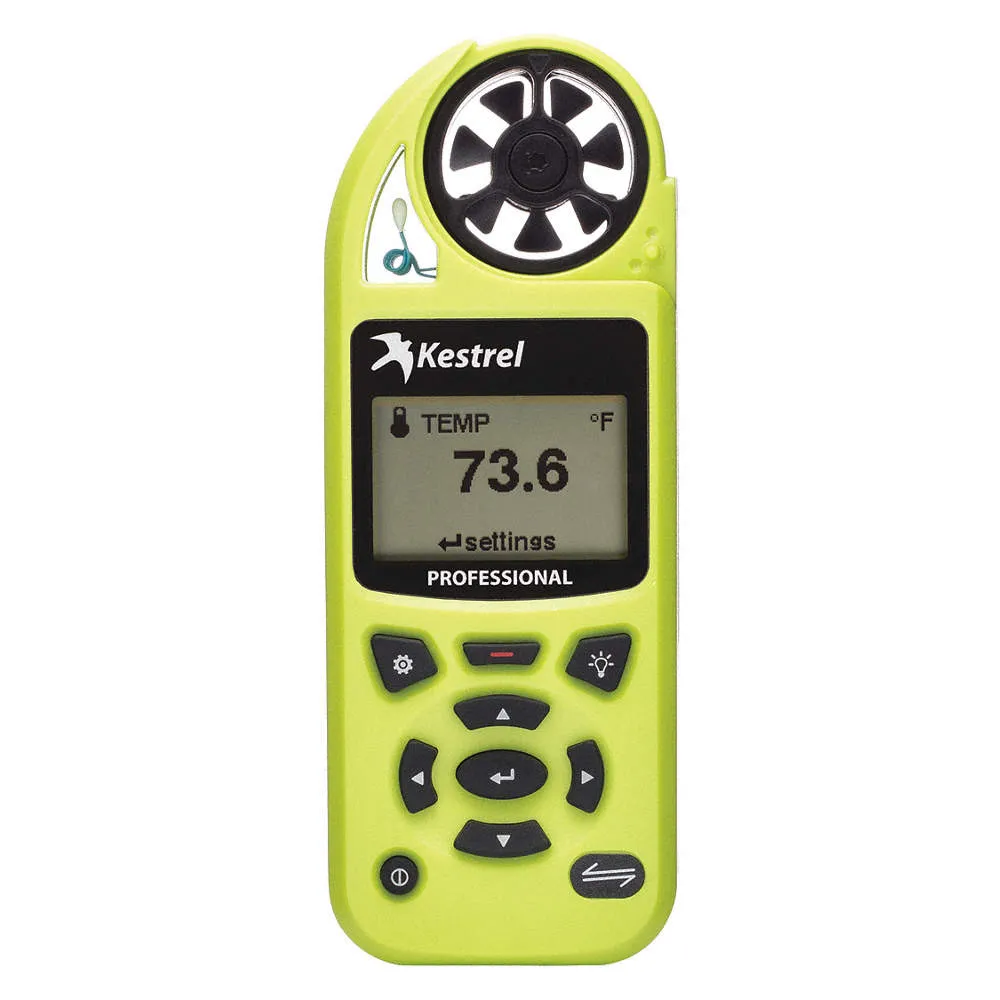

The Kestrel 5200 provides 17 measurements in all including evaporation rate, air velocity, air flow, air density, relative air density, Delta T, altitude, barometric pressure, density altitude, dew point temperature, heat stress index, humidity ratio (grains), relative humidity, station pressure (absolute pressure), temperature, wet bulb temperature (Psychrometric), and wind chill. The Kestrel 5200 features a large, high contrast screen, dual color backlight, scratch- and breakage-resistant window, corrosion-resistant battery compartment with secure door, intuitive user-interface, plus it tracks and logs over 10,000 sets of time-stamped data. Data log can be transferred to a mobile device wirelessly, or to a PC/MAC with the optional waterproof USB Data Transfer Cable (sold separately). Combine the Kestrel 5200 with a portable vane mount and portable tripod (each sold separately) for a data-logging weather station that rotates in even the slightest breeze and is ideal for short-term monitoring. This versatile, waterproof instrument floats, features an easy-to-read backlit display, and has an auto shutdown feature which activates after 15 minutes without a button press (feature can be disabled). Lanyard, protective pouch, lithium AA battery (average life 400 hours), certificate of conformity, and instruction manual are included. Five-year manufacturer’s warranty.
Optional Belt Clip Case for Kestrel 5200
| Sensors | |
| Wind Speed/Air Speed | Accuracy: Larger of 3% of reading, least significant digit or 20ft/min Resolution: 0.1 m/s, 1 ft/min, 0.1 km/h, 0.1 mph, 0.1 knots, 1 B, 0.1 F/S Specification range: 0.6 to 40.0 m/s, 118 to 7,874 ft/min, 2.2 to 144.0 km/h, 1.3 to 89.5 mph, 1.2 to 77.8 knots, 0 to 12 B, 2-131.2 |
| Ambient Temperature | Accuracy: 0.9°F (0.5°C) Resolution: 0.1°F (0.1°C) Specification range: -20 to 158°F (29 to 70°C) |
| Relative Humidity | Accuracy: 2% RH Resolution: 0.1% RH Specification range: 10 to 90% 25°C noncondensing |
| Pressure | 1.5 hPa|mbar, 0.044 inHg, 0.022 PSI Resolution: 0.1 hPa|mbar, 0.01 inHg, 0.01 PSI Specification range: 77°F (25°C), 700-1100 hPa|mbar, 20.67 to 32.48 inHg, 10.15 to 15.95 PSI |
| Compass | Accuracy:5° Resolution: 1°, 1/16th Cardinal Scale Specification range: 0 to 360° |
| Calculated Measurements | |
| Air Density | Accuracy: 0.0002 lb/ft3 (0.0033 kg/m3) Resolution: 0.001 lb/ft3 (0.001 kg/m3) Sensors employed: Temperature, Relative, Humidity Pressure |
| Air Flow | Accuracy: 6.71% Resolution: 1 cfm, 1 m3/hr, 1 m3/m, 0.1m3/s, 1 L/s Sensors employed: Air Speed,, User Input (Duct, Shape, & Size) |
| Altitude | Accuracy: typical: 23.6 ft/7.2 m from 750 to 1100 mBar, max: 48.2 ft/14.7 m from 300 to 750 mBar Resolution: 1 ft/1 m Sensors employed: Pressure, User Input (Reference Pressure) |
| Barometric Pressure | Accuracy: 0.07 inHg, 2.4 hPa|mbar, 0.03 PSI Resolution: 0.01 inHg, 0.1 hPa|mbar, 0.01 PSI Sensors employed: Pressure, User Input, (Reference Altitude) |
