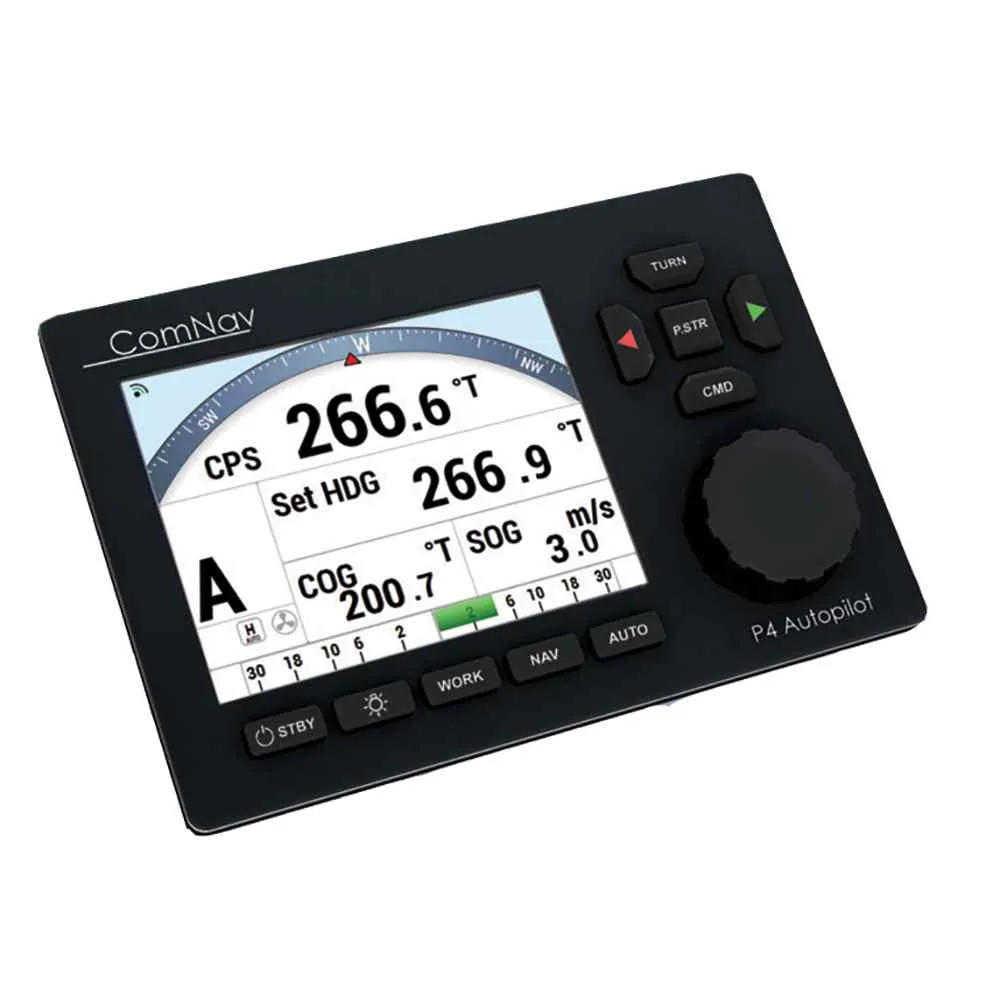

P4 Color Pack - Fluxgate Compass & Rotary Feedback f/Yacht Boats *Deck Mount Bracket Optional
Features:
- IST – Intelligent Steering Technology provides superior vessel steering capability
- ADAPTIVE steering for sea conditions and varying vessel speeds
- AUTO-SETUP – allows auto-drive detection, rudder response time, compass detection and calibration
- NMEA 2000, ETHERNET, and NMEA 0183 interface
- Configurable for all types of recreational mid-size to large pleasure craft
- PRC- Proportional Rate Control feature provides gentle smooth response
- Multi-Station capability with security station lock
- SUNLIGHT viewable LED backlit 5.7” TFT LCD 640 x 480 display
- NAV Mode provide adaptive precise track steering
- ALC – Automatic Leeway Compensation for Drift, Tide & Wind
- Fully compatible with onboard instruments and steering systems
- Z-Drive interface allows 360 ͦAzimuth drive interface using /- 10 Volts /4-20 milliamps analog signal (optional)
- Auto Thrust-assist for Dead-ahead slow or station keeping (optional)
- Multi-Language capability: English, Chinese, French, German, Norwegian, Spanish, Italian, Icelandic, and more
- Standard Mounting Bracket – Flush Mount, Swivel mount bracket is optional
- IP67 Waterproof – Control Head, TS4, NF4 and WS4
- RoHS & CE compliance for EMI and RFI immunity
Additional Features:
- 9 level backlit LCD display
- Color head gives you Red Night Vision mode for comfortable viewing in all conditions
- Pre-defined parameter sets for full or semi-displacement,planning hulls, stern drives and sailboats
- Multiple steering capability for Fast, Slow and Work modes
- Simple to use course knob with mechanical detent
- Multi-station capability with security station lock
- Automatic trim
- Adjustable yaw, turn rate and rudder settings
- PORT and STBD dodge buttons for collision avoidance
- Output for optional analog rudder angle indicator, up to 4 stations
- Fully compatible with onboard NMEA instruments and most steering systems
Specifications:
- Operating Voltage: 10 to 30 VDC
- Power Consumption: Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting) Drive Output: 20 Amps
- Network: NMEA 2000
- Navigational Interface: NMEA 0183 inputs
- NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
- Heading Reference: Fluxgate, Magnetic Compass, NMEA Compass or Heading Sensor GNSS compass
- Course Resolution: 1°
- Course Detection: 0.5°
- Control Head: Sunlight viewable high contrast LCD is 5.7” TFT LCD 640 x 480 VGA high resolution display
