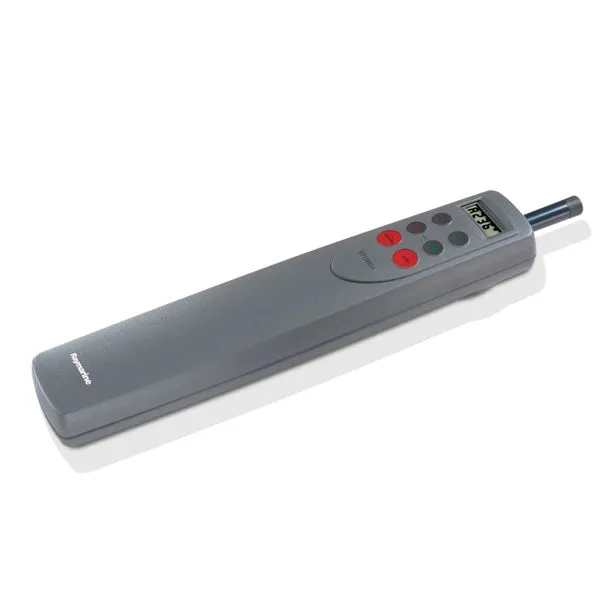

Raymarine ST2000 Tiller

Invented by Autohelm in 1973, tiller pilots have consistently been the Worlds most popular pilot ever since, setting the standard for performance, reliability and ease of use. Advanced features are standard on the Raymarine ST2000 Tiller Pilot. AutoTack lets you handle the sheets, while the Raymarine ST2000 Tiller Pilot tacks the boat and AutoSeastate intelligently keeps the boat on course while conserving power. Whether used as a stand-alone pilot or with a SeaTalk/NMEA GPS, the clear backlit LCD and 6-button keypad make these tiller pilots safe and easy to use.

Specifications

Powerful and efficient drive unit housed in a waterproof case? Easy-to-use controls
Backlit LCD confirms current and locked heading, plus wind and navigational data when connected to a system
Autotack
Efficient, intelligent steering for optimum power conservation
Manual and autoseastate, autotrim
User adjustable settings and alarms
Optional remote control and external compass
Backlit LCD display of heading, locked courseand navigational information
User calibration for optimum performance
WindTrim control in WindTrim mode
Automatic compass deviation correction
Northerly/Southerly heading compensation
Automatic heading deadband ? seastate control
Automatic tack
Waypoint advance feature
Integral fluxgate compass

Drive mechanism re-circulating ball drive
Drive unit thrust torque 77 kg (170 lb)
Helm speed (lock to lock) 4.5 seconds
Interfaces SeaTalk and NMEA 0183 Input
Maximum boat 4,500 kg (10,000 lb)
Operating temperature 0°C to 70°C (32°F to 158°F)
Power Consumption Standby: 40 mA (90 mA with full lighting)
? Auto: 0.5 A to 1.5 A depending on boat trim, helm load and sailing conditions
Power supply 10 V to 15 V DC
